Bathroom 3 Phase Exhaust BLDC Fan Motor High Efficiency Energy Saving

Product Categories
Guangdong Zhaoli Motor Group Co.,Ltd
Contact Now

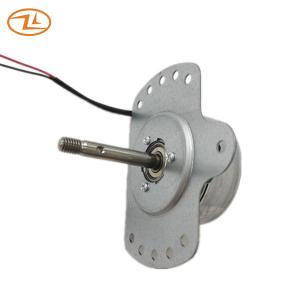

Bathroom 3 Phase Exhaust BLDC Fan Motor High Efficiency Energy Saving

  • 1
  • 2

Brand Name : Zhaoli

Model Number : DBT52H4B52

Certification : CE, ROHS, REACH

Place of Origin : China

MOQ : 2000

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10,000pcs per day

Delivery Time : 25-45 days

Packaging Details : cartons + pallets

Name : Brushless DC motor

Rated voltage : 24VDC

Stack size : φ52mm

Bearing : Ball bearings

Number of stator slots : twelve

Number of magnet poles : ten

Number of phases : three phase

Construction : Outer rotor

Insulation class : CL.B

Rectifying method : electronices

Control type : PWM

Output signal : FG

Packing : Customized packing

Application : bathroom fan / circulator fan

Contact Now

Low Noise High Efficiency BLDC Motor For Circulator Fan Bathroom Exhaust Fan

Brushless DC Motor is a type of energy-saved motor. It can be mainly divided into two parts, motor and circuit control. Motor is composed of rotor which its main component is permanent magnet and of stator which its main component is silicon steel sheet and copper wire.

The motor shaft is flexible to be customized.

  • Motor characteristics
Rated voltage 24VDC
Operating voltage 15~26.4VDC
Rated speed(free load) 2800+/- 10% RPM
Rated current(free load) 0.25A max
Rated load 93mN.m 8inch fan
Rated speed(on load) 1550+/- 10% RPM
Rated current(on load) 0.88A max
Rotation direction CCW(view from shaft side)
Working duty continuous
Position detection method Hall element
Insulation resistance 10MΩmin. (500VDC)
Dielectric strength 600VAC/1S leakage current <=5mA
Temperature rise <55K
Speed control PWM
Detecting method of motor speed FG signal
Operating condition 0℃~40℃, RH 5%~95%
Storage condition -20℃~60℃, RH 5%~95%
  • Protection function
Locked-rotor protection When the motor rotor and output shaft are locked, the motor lock protection function starts to work, the motor output is closed, and the motor output current is returned to Zero, the motor stops working.
Current limit function When the current in the motor circuit exceeds 3.0 A, the motor will be protected and stopped.

Drawing:

Bathroom 3 Phase Exhaust BLDC Fan Motor High Efficiency Energy Saving



Application: Bathroom exhaust fan, Circulator fan, Desk Fan, Stand fan, Oscilating fan, Table fan

Bathroom 3 Phase Exhaust BLDC Fan Motor High Efficiency Energy Saving

Bathroom 3 Phase Exhaust BLDC Fan Motor High Efficiency Energy Saving
